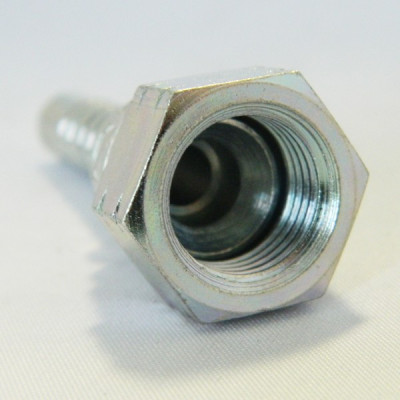

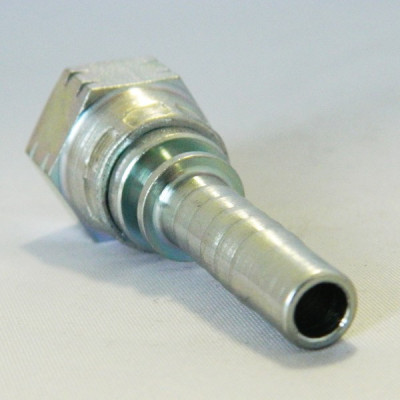

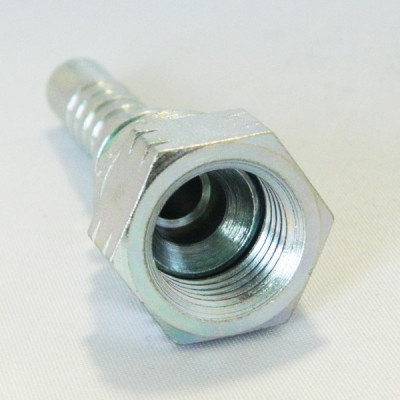

Embout à sertir femelle JIC

Référence

Ø Filetage


Ø Filetage fpp
mm

       Diamètre intérieur  flexible

DN

Pouce

Module

04TJ7 16

7/16

9.71-20fpp

4

3/16

3

06TJ7 16

7/16

9.71-20fpp

6

1/4

4

06TJ1 2

1/2

11.12-20fpp

6

1/4

4

06TJ9 16

9/16

12.76-18fpp

6

1/4

4

08TJ1 2

1/2

11.12-20fpp

8

5/16

5

08TJ9 16

9/16

12.76-18fpp

8

5/16

5

08TJ3 4

3/4

17.33-16fpp

8

5/16

5

08TJ5 8

5/8

14.3-18fpp

8

5/16

5

10TJ9 16

9/16

12.76-18fpp

10

3/8

6

10TJ3 4

3/4

17.33-16fpp

10

3/8

6

10TJ5 8

5/8

14.3-18fpp

10

3/8

6

10TJ7 8

7/8

20.26-14fpp

10

3/8

6

13TJ3 4

3/4

17.33-16fpp

13

1/2

8

13TJ7 8

7/8

20.26-14fpp

13

1/2

8

13TJ1"1 16

1"1/16

24.69-12fpp

13

1/2

8

16TJ7 8

7/8

20.26-14fpp

16

5/8

10

19TJ7/8

7/8

20.26-14fpp

16

3/4

12

16TJ1"1 16

1"1/16

24.69-14fpp

16

5/8

10

19TJ1"1 16

1"1/16

24.69-14fpp

19

3/4

12

19TJ1"3 16

1"3/16

27.87-12fpp

19

3/4

12

19TJ1"5 16

1"5/16

31.04-12fpp

19

3/4

12

25TJ1"1 16

1"1/16

24.69-14fpp

25

1"

16

25TJ1"5 16

1"5/16

31.04-12fpp

25

1"

16

25TJ1"5 8

1"5/8

38.98-12fpp

25

1"

16

32TJ1"5 8

1"5/8

38.98-12fpp

32

1"1/4

20

38TJ1"7 8

1"7/8

45.33-12fpp

38

1"1/2

24

50TJ2"1 2

2"1/2

61.2-12fpp

50

2"

32
