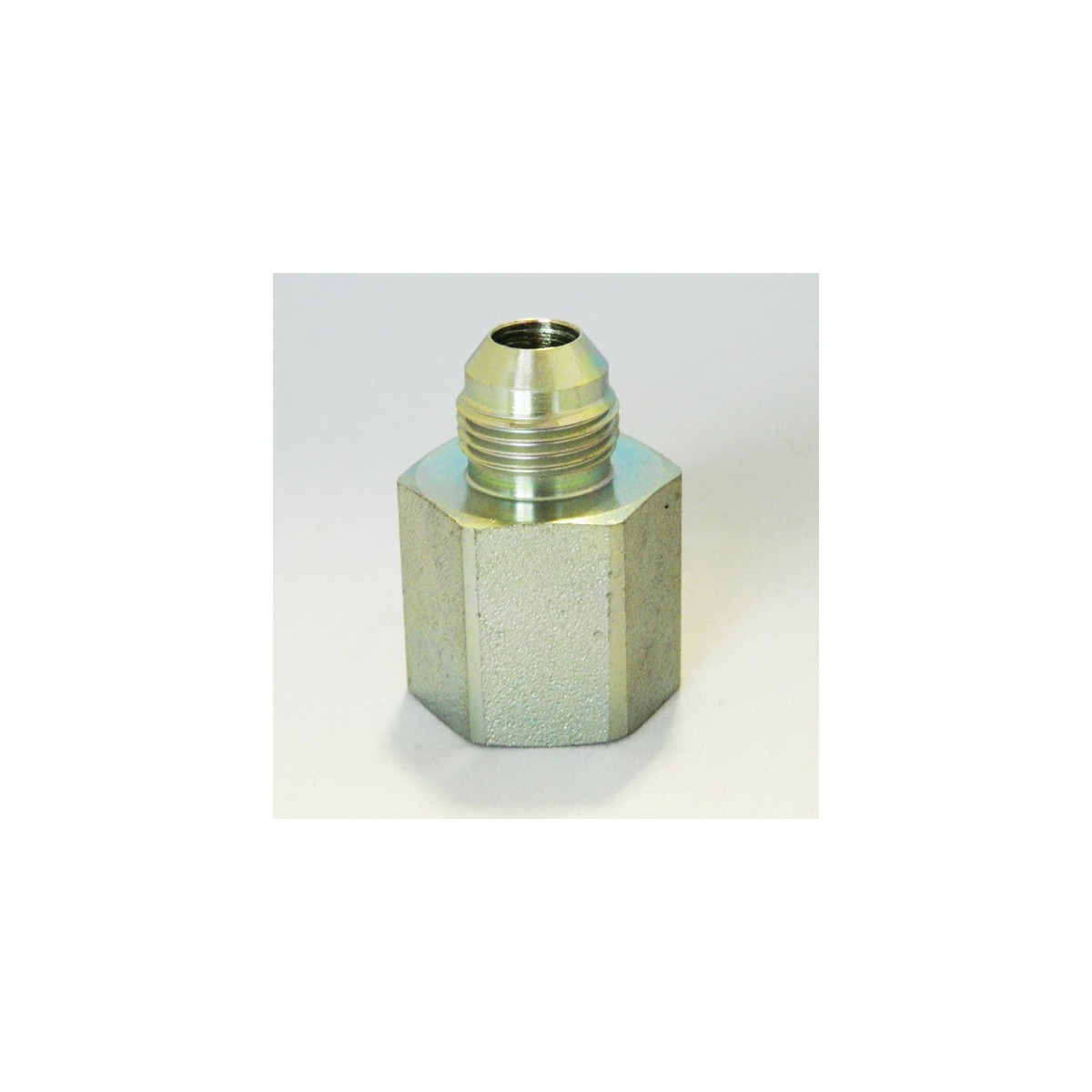

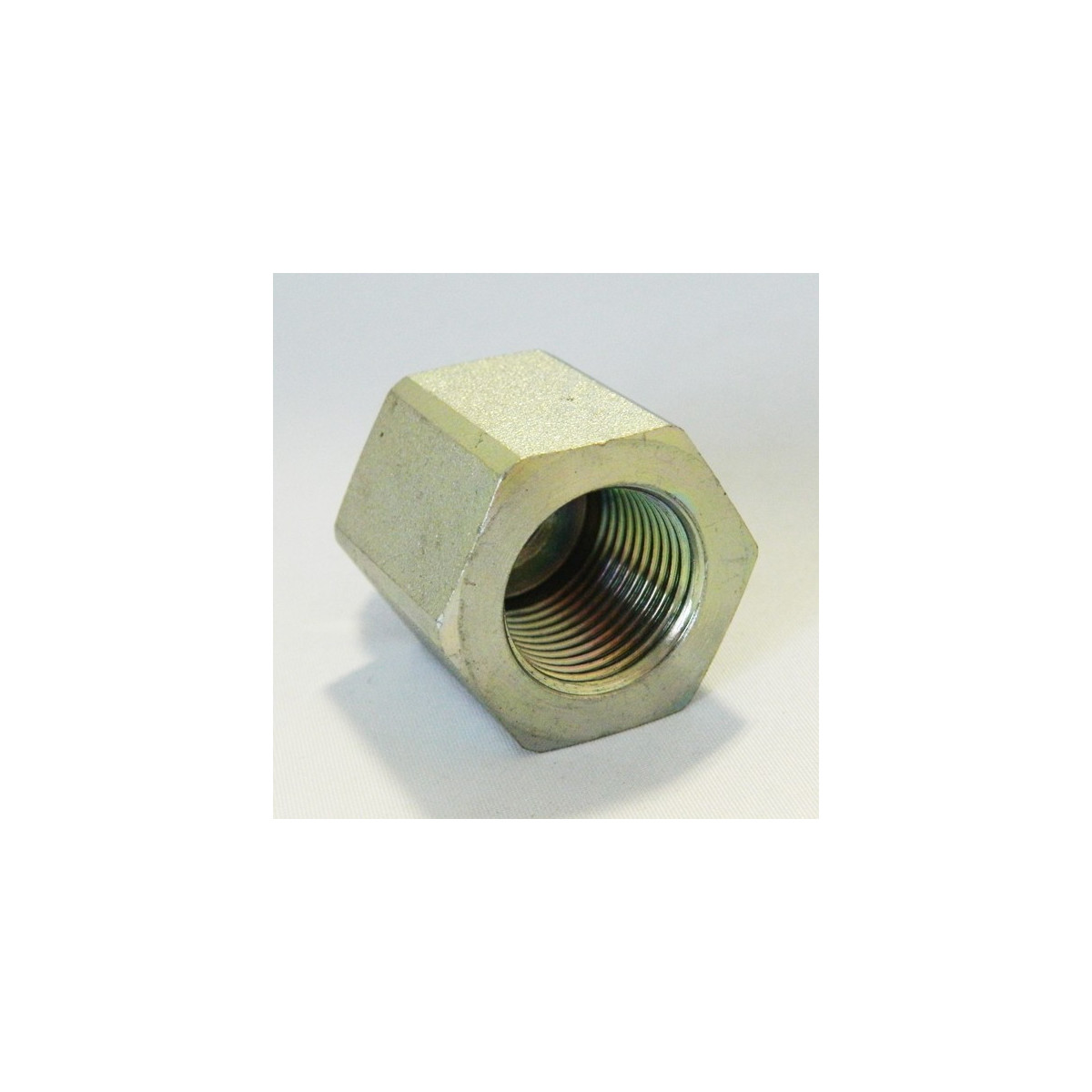

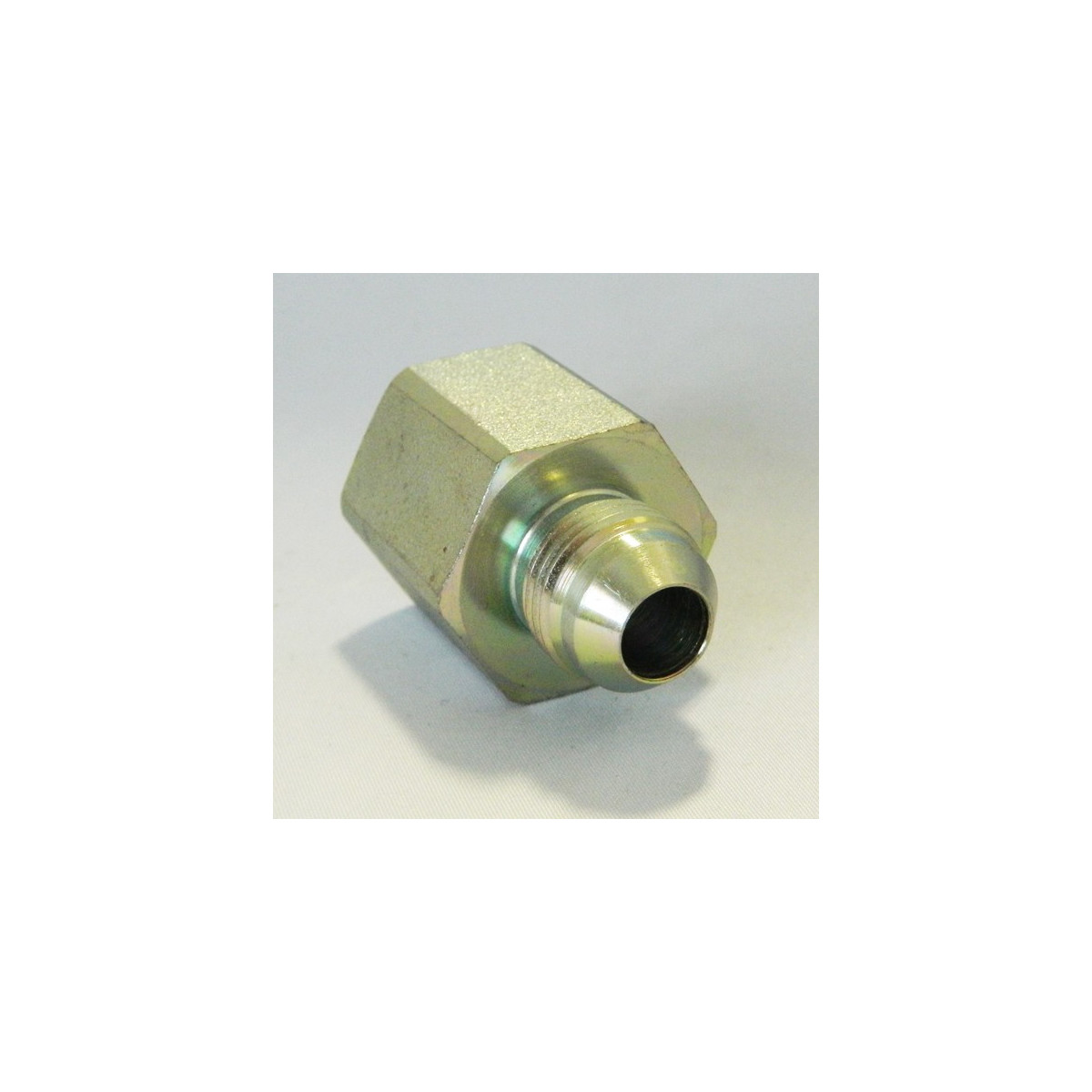

Adaptateur Union Mâle JIC X Femelle GAZ

Référence

Ø Filetage JIC

Ø Filetage MJIC

Ø Filetage gaz

Ø Filetage FGAZ

Longueur

Ø Clé

Pression

MJ7/16 X FG1/8

7/16-20fpp

11.1 mm

1/8-

9.7 mm

30.2 mm

14

350 bar

MJ1/2 X FG1/8

1/8-

9.7 mm

29.7 mm

14

350 bar

MJ7/16 X FG1/4

7/16-20fpp

11.1 mm

1/4-

12 mm

35.4 mm

19

350 bar

MJ1/2 X FG1/4

1/2-20fpp

12.7 mm

1/4-

12 mm

35.3 mm

19

350 bar

MJ9/16 X FG1/4

9/16-18fpp

14.3 mm

1/4-

12 mm

35.6 mm

22

350 bar

MJ9/16 X FG3/8

9/16-18fpp

14.3 mm

3/8-

13.5 mm

37.1 mm

22

350 bar

MJ3/4 X FG3/8

3/4-16fpp

19 mm

3/8-

13.5 mm

39.6 mm

22

350 bar

MJ3/4 X FG1/2

3/4-16fpp

19 mm

1/2-

17.6 mm

46 mm

30

350 bar

MJ7/8 X FG1/2

7/8-14fpp

22.2 mm

1/2-

17.6 mm

48 mm

30

350 bar

MJ1"1/16 X FG1/2

1"1/16-12fpp

27 mm

1/2-

17.6 mm

52.1 mm

30

350 bar

MJ1"1/16 X FG3/4

1"1/16-12fpp

27 mm

3/4-

26.4 mm

52.3 mm

36

350 bar

MJ1"5/16 X FG1"

1"5/16-12fpp

33.3 mm

1"-

33.2 mm

59.7 mm

46

210 bar

MJ1"5/8 X FG1"1/4

1"5/8-12fpp

41.3 mm

1"1/4-

41.9 mm

63.2 mm

50

210 bar

MJ1"7/8 X FG1"1/2

1"7/8-12fpp

47.6 mm

1"1/2-

47.8 mm

66.5 mm

60

210 bar
